Interface Review
Assess contact areas, mechanical locking, geometry and material compatibility.
Manufacturing Process
Silicone overmolding and insert molding for integrated components.
Overmolding and insert molding integrate silicone with selected plastic, metal or other components to create a combined functional product.
PROCESS OVERVIEW
Overmolding & Inserts in a custom project workflow.
The final route is confirmed only after reviewing the complete product brief.

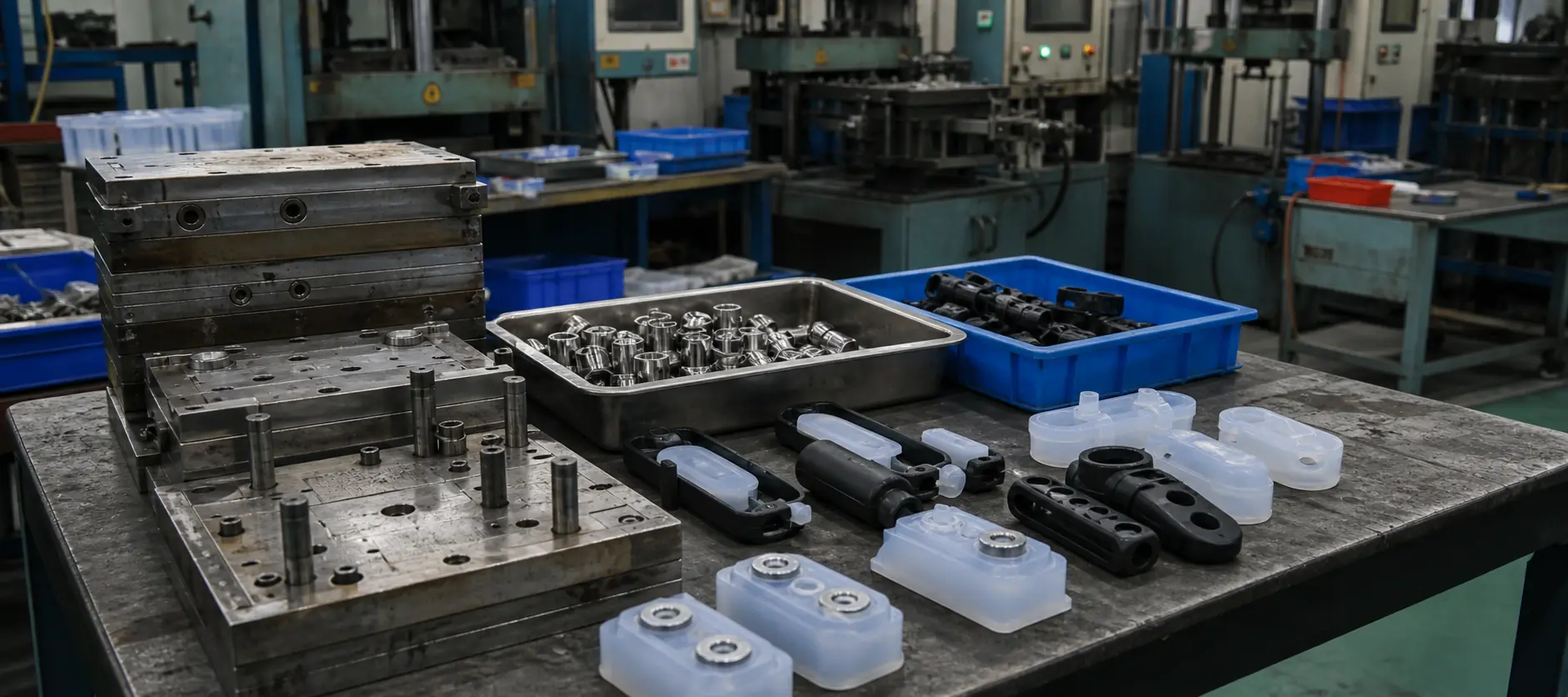

Insert Preparation
Confirm the supplied or developed insert dimensions, finish and handling method.
Molding Route
Select tooling and processing based on the combined construction.
Functional Validation
Review bond, fit, alignment and product function on the approved sample.
OVERMOLDING FIT MATRIX
Interface design decides whether the combined part works.
Silicone-to-insert projects need careful review of component fit, handling and final function.
Product FitSilicone combined with metal, plastic or another supporting component.Useful when the finished product needs grip, sealing, protection or comfort.
Insert ReviewInsert dimensions, surface, cleanliness, tolerance and supply method must be confirmed.Small insert changes can affect alignment and molding stability.
Tooling FocusTooling must hold the insert correctly while forming the silicone area.Part design should consider locking, bonding and visible edge quality.
Validation FocusFit, pull, alignment, visual edge and practical product function are checked together.The approved sample becomes the reference for assembly and inspection.
QUALITY CONNECTION
Process control follows the approved product standard.
Manufacturing and quality review are planned together, with critical details defined before production.
- Approved sample and drawing reference
- Material, color and surface requirements
- Critical dimensions and functional checks
- Final inspection and packaging standard
01Approved sample and drawing reference
02Material, color and surface requirements
03Critical dimensions and functional checks
04Final inspection and packaging standard
START A PROJECT
Have a silicone product in mind?
Share your drawing, reference sample, target quantity and market requirements. We will help organize the next step.
